Auger Drive Borer 750Kg to 2Tonne Excavator

$1,991.25 – $3,165.75

Package includes

Standard Earth drill *HALO version contact us*
Bracket (single or twin pin)
x1 Auger
2m hoses with BSP couplings

Low maintenance with 5yr gear box and 3yr motor warranty

CLICK HERE FOR FULL SPEC

** BRACKET IS MADE TO ORDER 2-3 DAYS**

Drill

Bracket

Auger Diameter

Clear

Additional Augers

Pin Diameter *

Dipper Gap *

Pin Centre *

Product total

Options total

Grand total

Question about this Product

Send us your question about Auger Drive Borer 750Kg to 2Tonne Excavator

or send us an email

* required fields

*Name

*Email

* Telephone

*Shipping

*Postcode

Machine S/N

Your Message

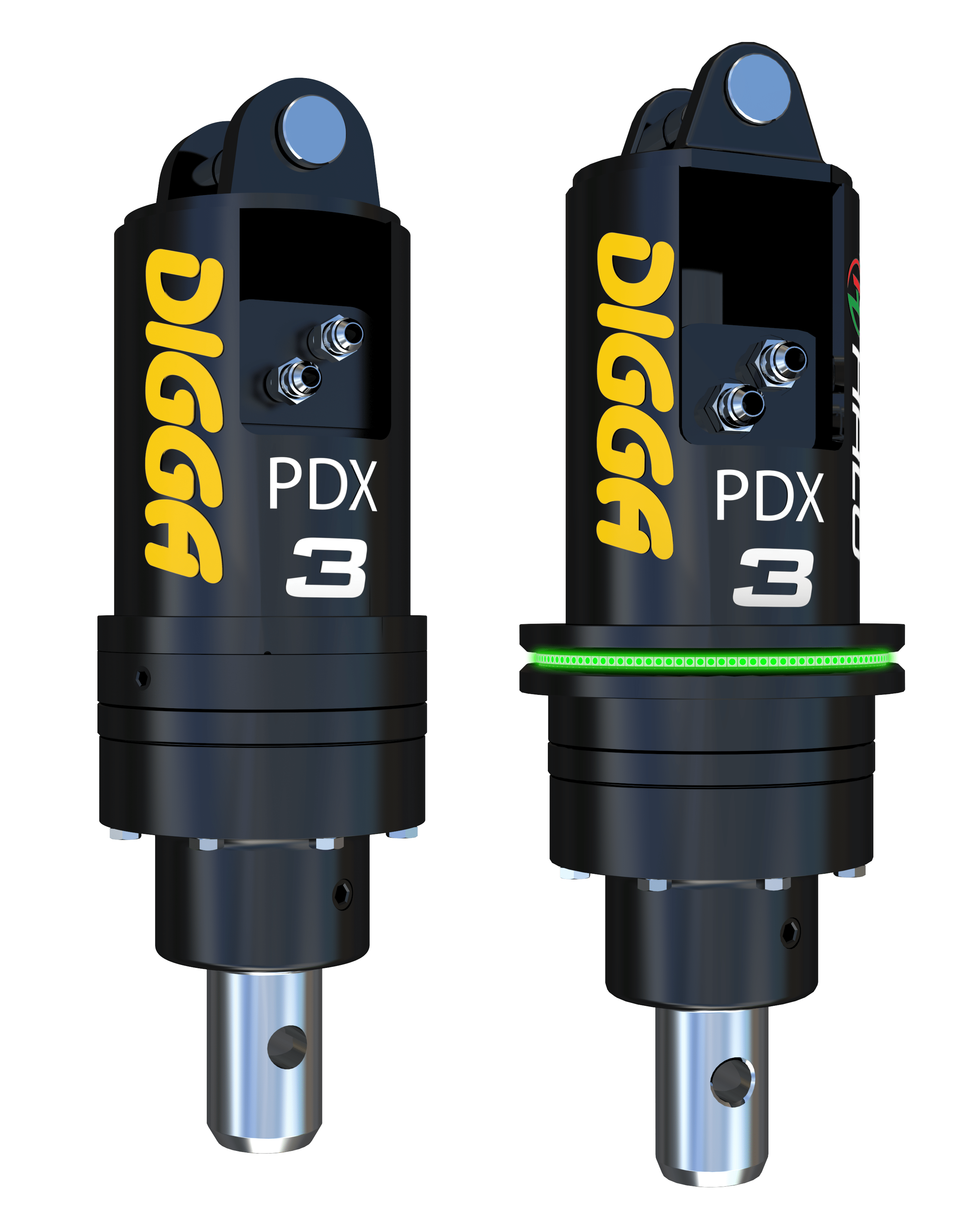

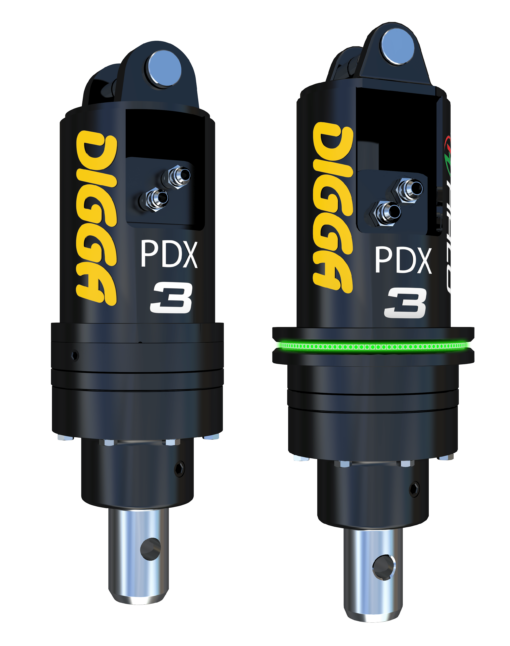

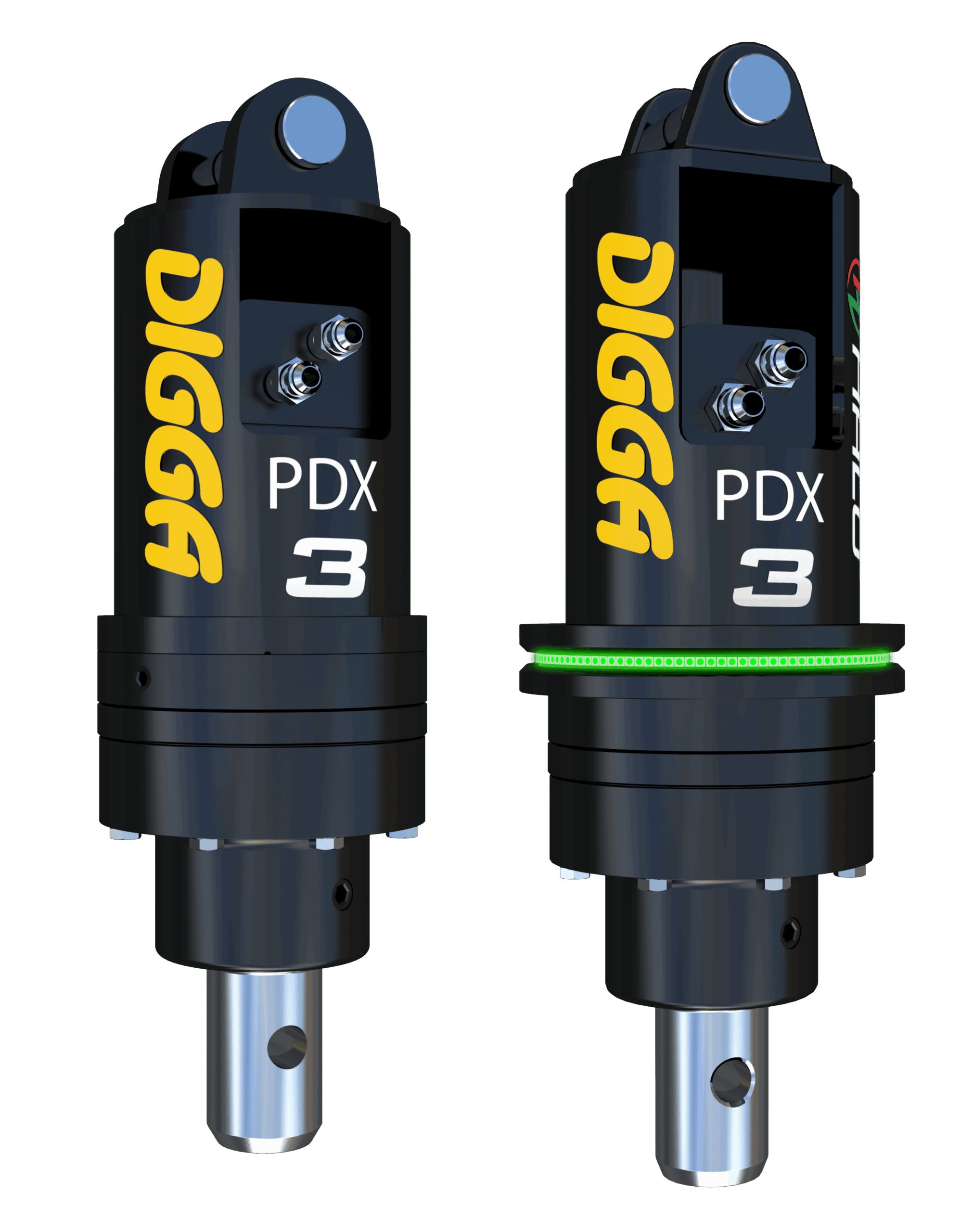

Mini Digger Earth Auger Drill

Features

Compact high torque Digga manufactured gearbox
Highly efficient design with less moving parts
Fitted with Eaton/Digga geroler hydraulic motor
No case drain required
Full range of shafts available upon request
Extreme duty shaft locking system
Drive fits down the hole for greater digging depth

Digga’s PDD to PDX3 range of digger Earth Drills, also called Auger Drives, are ideally suited for micro excavators and small skid steer loaders with a flow between 15 to 55 lpm and a weight of 750kg to 2T. Ideally used for drilling holes with augers for fencing, tree planting, house foundations, and more.

The innovative design allows the gearbox to go down the hole to maximise drilling depth without extensions, eliminating downtime and minimises maintenance, optimising your returns. Digga planetary earth drills are fitted with Digga / Eaton bell motors specially designed for earth drilling in most ground conditions.

	PDD	PDX2	PDX3
Rec Flow Range	15-45 lpm	30-50 lpm	30-55 lpm
Max Torque	1171 Nm	2307 Nm	2831 Nm
Pressure Valve Fitted	Optional	Optional	Optional
Max Pressure Do Not Exceed	240 bar @ 60 lpm
Max Flow Do Not Exceed	95 lpm @ 160 bar	115 lpm @ 130 bar
Max Power Do Not Exceed	25 Kw (34 hp)
Overall Length	500 mm	557 mm	579 mm
Diameter	187 mm	187 mm	187 mm
Weight No Frame / Hitch	41 Kg	45 Kg	45 Kg
Std Output Shaft	65 mm Round	65 mm Round	65 mm Round
Swing Control	n / a	n / a	n / a
Diggalign	n / a	n / a	n / a
Rec Auger	A4 / RC4	A4 / RC4	A4 / RC4
Max Auger Dia Clay/Shale*	400 mm	450 mm	450 mm
Max Auger Dia Earth*	500 mm	600 mm	600 mm
Halo Available	Yes	Yes	Yes

(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.

Suitable mini digger earth auger drill for the following machines and other micro and 1.5ton machines not listed below

Airman AX08 Airman AX12 Airman AX15 Airman AX16 Airman AX17
Bobcat X316 Bobcat E16 Bobcat X119 Bobcat X120 Bobcat X220 Bobcat X319 Bobcat X320 Bobcat X322 Bobcat X323
Carter Micro Carter CT16-9 Carter CT18
Case CK13 Case CK15 Case C15 Case C15 Maxi Case C16 Case CX16B Case CX18B
CAT 301.5 CAT 301.8
Daewoo S010 Daewoo Solar Daewoo 015 Daewoo Solar Daewoo 18VT
Hanix H05 Hanix H08B Hanix H12A Hanix H15A Hanix H15B Hanix H15B Plus
Hitachi EX08 Hitachi UE10 Hitachi UE12 Hitachi UE15 Hitachi UE15SR Hitachi EX12 Hitachi EX15 Hitachi EX15-2 Hitachi EX15 Hitachi EX16 Hitachi EX16-2B Hitachi ZX16 Hitachi EX17-2B Hitachi ZX18
IHI 4GX IHI 4JX IHI 12J IHI 12JX IHI IS10C IHI IS10F IHI IS10G IHI IS10S IHI IS12C IHI IS12G IHI IS14G IHI 15J IHI 17J IHI 17JE IHI 18J
JCB 801 JCB 801.4 JCB 801.5 JCB 8015 JCB 801.6 JCB 8016 JCB 8017 JCB 8018 JCB 15C JCB 16C JCB 18Z JCB 19C
Kobelco SK07 Kobelco Kobelco Kobelco SK09 Kobelco EH09 Kobelco SK13SR Kobelco SK014 Kobelco SK015 Kobelco SK15SR Kobelco SK16MSR Kobelco SK17SR-3
Komatsu PC03 Komatsu PC05 Komatsu PC07 Komatsu PC09 Komatsu PC10UU Komatsu PC12R-8 Komatsu PC15R-8 Komatsu PC18MMR-2
Kubota K008-3 Kubota U10-3 Kubota K008-5 Kubota U10-5 Kubota KH31 Kubota KH35 Kubota KH36 Kubota KH41 Kubota KX36 Kubota KX36-2 Kubota KX36-3 Kubota KX41 Kubota KX41-2 Kubota KX41-2S Kubota KX41-2V Kubota KX41-3 Kubota U15 Kubota U15-3 Kubota U17-3
Libra 116S Libra 118S-SV Libra 114S Libra 216S Libra 218S
Neuson 803 Neuson 1200 Neuson 1302RD Neuson 1402RD Neuson 1403 Neuson 1500RD Neuson 1502RD Neuson 1503 Neuson 1700RD Neuson 1702RD Neuson 1903
New Holland EC15 New Holland EH16 New Holland EH18 New Holland FKE16 New Holland FKE18 New Holland E16 New Holland E18
Nissan N080 Nissan N080-2 Nissan N120R Nissan N150R Nissan N150-2
Pel Job EB10 Pel Job EB10.4 Pel Job EB12 Pel Job EB12.4 Pel Job EB14 Pel Job EB14.4 Pel Job EB150 XR Pel Job Sirius Pel Job Sirius Plus Pel Job EB150 XT Pel Job EB150 XTV Pel Job EB16 Pel Job EB16.4
Schaeff HR11 Schaeff HR12
Sumitomo SH7GX
Takeuchi TB007 Takeuchi TB108 Takeuchi TB210R Takeuchi TB014 Takeuchi TB015 Takeuchi TB016 Takeuchi TB216 Takeuchi TB215R Takeuchi TB217 Takeuchi TB219 Takeuchi TB125 Takeuchi TB128FR Takeuchi TB23R Takeuchi TB225
Volvo EC13 Volvo EC14 Volvo EC15
Yanmar B05 Yanmar SV05 Yanmar B08 Yanmar SV08 Yanmar VIO10 Yanmar B10 Yanmar B12 Yanmar B12.3 Yanmar B14 Yanmar B15 Yanmar B15-3 Yanmar B17 Yanmar SV15 Yanmar SV17 Yanmar VIO15
